8 Port Layer 3 EPON OLT
Product review
The RL Tech RH8008ES OLT is self-developed Compact 1U EPON OLT equipment, meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network—based on Ethernet Passive Optical Network (EPON) and telecom EPON technical requirements 3.0, possessing super EPON access capacity,
carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirements on account of its excellent management, maintenance, and monitoring capability, abundant service features, and flexible network mode. RH8008ES can be used with the NMS2000 network management system so as to provide users with the perfect solution.
Benefits
Various interfaces for network applications

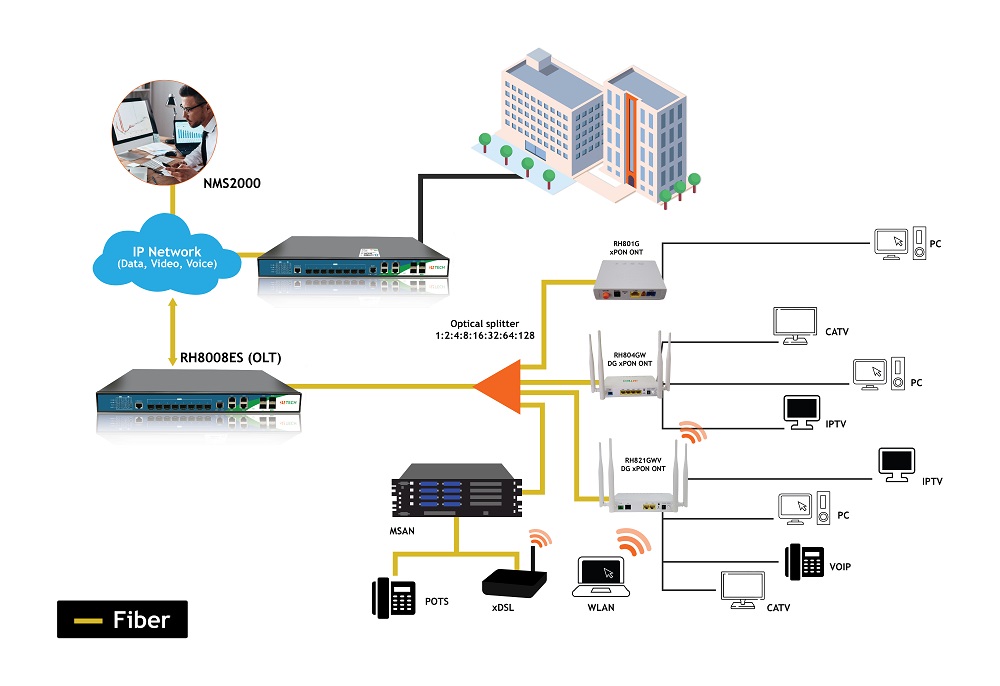

The 1U OLT supports various interfaces including 8xEPON, 4x Gigabit Ethernet RJ-45 Ports, and 4x 10G SFP+ Ports. The RJ-45 GE interfaces facilitate the connection of local servers for vertical application, or aggregate access network technologies like VoIP AG, etc. Customers can have more flexibility and unified management to integrate more services together. The 10G interfaces can be used for ring topology or cascading other EPON devices without sacrificing the bandwidth.
Advanced Triple-Play and mass deployment functionality
The RLTECH RH8008ES OLT supports QoS, security and multicast functionalities; it also supports IGMP snooping to prevent unnecessary forwarding of multicast traffics to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The RLTECH RH8008ES OLT also supports the multicast VLAN feature that distributes the source to all VLANs requesting a video stream.
Key Features
• Multi-user management and configuration olt
• Multiple management methods (Serial port, Telnet, Tacacs, HTTP auxiliary management, NMS/EMS
• Automatically configure onu from olt (wan and voice configuration)
• Ip Layer 3 function (RIP, OSPF, BGP, DHCP Snooping, DHCP Relay, DHCP Option 82, IPV6, IGMP Snooping, etc.
• Traffic and alarm monitoring
Manage from a centralized location
• Facilitates network management using the NMS2000 network management system
• Overview status of all ONT list Remote configuration
